BSA203CG軸承
SKF進口軸承代理鼎力晟業為用戶提供高品質的BSA203CG軸承，無論是工業配套還是維修市場，用戶都可以在這里找到貨期最短的SKF BSA203CG軸承，確保您的不間斷生產。
型號：BSA203CG
品牌：SKF
內徑：17
外徑：40
厚度：12
系列：角接觸推力球軸承 for screw drives, single direction
【
手機版 BSA203CG軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

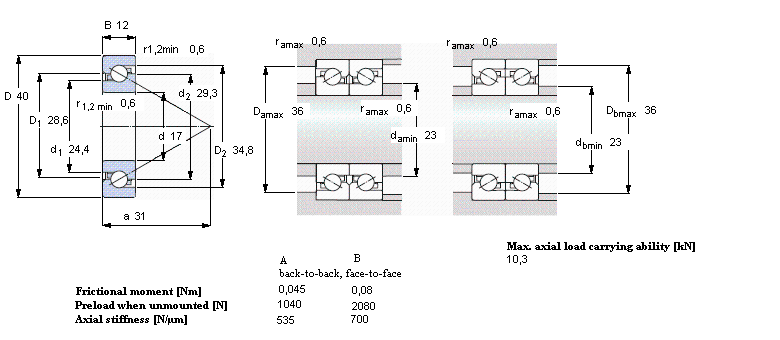

SKF BSA203CG尺寸圖紙
BSA203CG軸承基本參數
| 角接觸推力球軸承 for screw drives, single direction | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | ||||||||||
| d | D | H | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 17 | 40 | 12 | 16,6 | 34,5 | 1,27 | 11000 | 14000 | 0,078 | BSA 203 CG | BS 217 7P62U | |
角接觸推力球軸承 for screw drives, single direction
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- BSA201CG軸承
- 12
- 32
- 10
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA202CG軸承
- 15
- 35
- 11
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA203CG軸承
- 17
- 40
- 12
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA204CG軸承
- 20
- 47
- 14
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSD2047CG軸承
- 20
- 47
- 15
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA205CG軸承
- 25
- 52
- 15
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSD2562CG軸承
- 25
- 62
- 15
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA305CG軸承
- 25
- 62
- 17
- 角接觸推力球軸承 for screw drives, single direction
